Friday, July 17, 2009

Delco Remy Starter motor and alternator

Company Overview: As a former division of General Motors, Delco Remy has developed advanced technologies and provided the industry with automotive, heavy-duty and U.S. military products for 76 years. August 1994: The Heavy Duty Systems and a portion of the Automotive Systems were sold to a group of private investors led by former Chrysler President, Harold K. Sperlich and Delco Remy executive, Thomas J. Snyder. August 2004: The company changed its name to Remy International, Inc., marking the tenth anniversary as a separate company from General Motors Corporation. Remy Inc. retains a perpetual licensing agreement with General Motors to manufacture, market and sell Delco Remy branded alternators and starters for heavy-duty truck, agricultural, construction and industrial markets worldwide and O.E. automotive starters for certain customers.Today: The company has doubled in size with over 6000 employees worldwide and recorded more than $1 billion in sales last year, becoming the seventh largest privately-held company based in Indiana.

Alternator
23SI Detailed Specifications:Performance Output: 145 Amps - 12 Volts 130 Amps - 12 Volts 100 Amps - 12 Volts 70 Amps - 24 Volts 50 Amps - 24 Volts Maximum Speed: 10,000 rpm Continuous 12,000 rpm Intermittent Rotation: Clockwise Temperature Limits: -30° F or -34° C Ambient (Min) +200° F or +93° C Ambient (Max) Polarity: Negative Ground Standard Mounting: SAE J180 Standard and pad mount Weight: 19.1 lbs or 8.66 kg


The Delco Remy 35SI Features and Benefits: • Strategically placed radiant vents ensure maximum cooling of internal components in high-temperature underhood environments • Premium brushless design extends service life and optimizes performance • High-efficiency stator windings and optimized rotor design deliver high output • Oversized heavy duty bearings and premium-quality steel shaft withstand high vibration and heavy belt loads • High thermal-capacity design stands up to extreme temperatures, thermal stress for extended service life • All 35SI Alternators feature Remote Sense Technology capability, optimizing battery state of charge
35SI Detailed Specifications:Performance Output: 135 Amps - 12 Volts 110 Amps - 12 Volts Maximum Speed: 10,000 rpm Continuous 12,000 rpm Intermittent Rotation: Clockwise or Counterclockwise Temperature Limits: -40° F or -40° C Ambient (Min) +221° F or +105° C Ambient (Max) Polarity: Negative Ground Standard Insulated models available Mounting: SAE J180 Standard, Quad mount, PAD Mount Weight: 25.4 lbs or 11.5 kg



50DN Gear Drive Detailed Specifications:Maximum Speed: 6,500 rpm Continuous 7,000 rpm Intermittent Ambient Temperature Limits: Cooling oil: 121° C (250° F) Maximum Required Oil Flow: Up to 2.0 gal/min Polarity: Negative Ground Rotation: Clockwise or counterclockwise Weight: 100 lbs (45.3 kg) Mounting: Flange Application: Detroit Diesel V-Series Engines Very-high Output Models: 300 Amps, 12 Volt @ 5000 rpm 270 Amps, 24 Volt @ 5000 rpm Rated at stabilized engine temperature Oil-cooled: Cooled by engine oil Direct Drive, Gear Driven Brushless Construction: No rotating windings No brushes or slip rings No rubbing shaft oil seals No periodic maintenance

Heavy duty Starter motor
37MT Detailed Specifications:Engine Size: Diesel: up to 8.3 liters up to 506 cu. in. System Voltage: 12 or 24 Volts Rotation: Clockwise or Counterclockwise Standard Mountings: SAE #1, SAE #3 Standard Pinions: 10-tooth/8-10 pitch, 12-tooth/8-10 pitch, 11-tooth/Module 3 Weight: 50 lbs (22.7 kg) Rotatable Drive Housing: Two-piece rotatable drive housing12 or 24 positions available Drive: Heavy duty designPositive-shift Overcrank Protection: (Optional) Prevents overcrank damageCircuit breaker automatically resets after it has cooled Jump Start Protection: (Optional) Special shield and solenoid cap available to meet SAE J1493 recommendations
Heavy Duty Starter motor
41MT Detailed Specifications:Engine Size: Diesel: up to 9.8 liters up to 598 cu. in. System Voltage: 12 or 24 Volts Rotation: Clockwise Standard Mountings: SAE #1, SAE #3 Standard Pinions: 11-tooth/6-8 pitch, 11-tooth/8-10 pitch12-tooth/8-10 pitch Weight: 50 lbs (22.7 kg) Rotatable Drive Housing: Two-piece rotatable drive housing12 or 24 positions Drive: Heavy duty designPositive engagementRubber shock absorber Overcrank Protection: (Optional) Prevents overcrank heat damageCircuit breaker automatically resets after it has cooled Jump Start Protection: (Optional) Special shield and solenoid cap available to meet SAE J1493 recommendations

50MT Detailed Specifications:Engine Size: Diesel: up to 29.5 liters up to 1800 cu. in. System Voltage: 12, 24, 32, 64 Volts Rotation: Clockwise or Counterclockwise Standard Mountings: SAE #3 Standard Pinions: 11-tooth/6-8 pitch, 12-tooth/8-10 pitch,13-tooth/8-10 pitch, 12-tooth/Module 3 Weight: 79 lbs (35.8 kg) Rotatable Drive Housing: Two-piece rotatable drive housing 12 or 24 positions Drive: Heavy duty designPositive engagement Rubber shock absorber Overcrank Protection: (Optional) Prevents overcrank heat damage Circuit breaker automatically resets after it has cooled Jump Start Protection: (Optional) Special shield and solenoid cap available to meet SAE J1493 recommendations
38MT Gear reduction
Detailed Specifications:Engine Size: Diesel: 12V: up to 10.0 Liters 24V: up to 12.0 Liters System Voltage: 12 or 24 Volts Rotation: Clockwise Standard Mountings: SAE #1, SAE #3 Standard Pinions: 10-tooth/8-10 pitch, 12-tooth/8-10 pitch,11-tooth/Module 3 Weight: 22 lbs (10 kg) Drive: Heavy Duty DesignElectrical Soft-Start Engagement SystemOverrunning Clutch

Monday, July 6, 2009

Hiab crane

Loglift and Jonsered forestry and recycling cranes
Forestry cranes are used at the beginning of the wood processing value chain: in logging and in timber transporting. The product line covers robust cranes used in logging trucks and also durable harvester and forwarder cranes. Additionally, the product line’s cranes are used in the recycling industry and as stand-alone industrial units. With grapple sizes ranging from small to large industrial grapples, there is sure to be the right size for every crane application.
Industrial cranes
Industrial cranes mounted in a fixed position are subject to constantly repeating stress, requiring lifting capability, long service life and excellent control characteristics - all of which characterize LOGLIFT and JONSERED cranes. Since the location and application determine the most suitable model in each case, Loglift Jonsered is more than happy to provide assistance during the design phase of the project.
Recycling cranes
JONSERED cranes are the number one in their field in handling scrap metal and recycled waste, where accuracy and durability is required from a crane, in addition to power. JONSERED’s balanced hydraulics allow smooth and easy movements, which reduce the stress on the crane and increase its service life. It is well known among professionals in the field that these are the decisive characteristics in everyday work.
Lightweight cranes for easier tasks
Lifting capacity of the cranes in the Light Capacity range falls below 10 tonne metres. Cranes belonging to this range are easily fitted onto most small/medium sized vehicles. Though small, these compact cranes will perform a wide variety of demanding chores with ease.



Midsized cranes for demanding chores
The cranes in the Mid Capacity range lifts between 10 and 23 tonne metres making these cranes an excellent choice for solving the rougher and tougher tasks. The wide variety of crane setup provided by the XS concept will always give you an optimal crane configuration for your line of work


Powerful cranes for heavy-duty work
Lifting capacity of cranes in the High Capacity range exceeds 23 tonne metres. The excellent flexibility in combination with the outstanding performance of these cranes makes them extraordinarily versatile. By using our XS concept you will be provided with a crane with performance beyond comparison.


HIAB XS MEWP - Two solutions in one
The safety standard for work using mobile elevating work platforms, otherwise known as personnel baskets, keeps getting stricter. The current standard, EN 280, places high safety requirements on both crane and basket. And, given that safety has always been a major concern at Hiab, your new HIAB XS HiPro crane can now be fitted with a personnel basket - in full compliance with European standard EN 280. We call this option Mobile Elevating Work Platform, MEWP.
HIAB XS MEWP is a complete, certified solution for crane and personnel basket.
HiPro crane models currently certified for MEWP are:XS 122, 144, 166, 211, 244, 288, 322, 377, 422 and 47

Sunday, July 5, 2009

Terex Crane

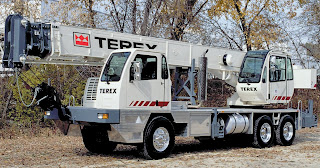

Terex Crane Telescopic boom

FEATURES
T300-1/T300-1XL Series
Truck Cranes
30-40 tons (27-36 mt)
maximum lifting capacity
94 ft. (28.6 m) or 105 ft.
(32.0 m) maximum boom
length
147 ft (44.8 m) or 158 ft.
(48.1 m) maximum tip
height
Four-section full power,
mechanically synchronized
boom with single lever control
Swingaway jib offsettable 0º,
15º or 30º
Two-speed main and auxiliary
winches
Quick-reeving boom head and
hook block
Fully independent multi-position
out and down outriggers
Environmental operator’s cab
optimized load visibility and
productivity
Electro-Proportional Joystick
Controls
RCI 510 load system Rated
Capacity Indicator
Travel speed to 60 mph
(96 km/h)
Easy to read load chart books
include range diagrams
Machines shown may have optional equipment
12-month or 2000 hours warranty,
major weldments are
5-years or 10,000 hours


Rough terrain crane
Maximum Lifting Capacity:
30 t (27.27 mt)
Maximum Boom Length:
30-94 ft (9.23-28.78 m)
Elevation Degree (min to max.):
-4 to 76 degrees
Available Jib Length:
1)26 ft (7.93 m)2)26-43 ft (7.93-13.11 m)
Maximum Tip Height with Jib:
S1)124 ft (37.82 m)S2)140 ft (42.7 m)
Standard Engine Type:
Cummins 6BT 5.9
Standard Horsepower:
130 hp (97 kW)
Max Speed:
24.5 mph (39.4 km/h)
Max Gradeability:
112.34%
Overall Length
39 ft 7 in (12.06 m)
Overall Width:
8 ft (2.44 m)
Overall Height:
10 ft 11.75 in (3.35 m)
Warranty:
12-month or 2000 hours


FEATURES
u 30-35 tons (27-32 mt) maximum lifting capacity
u 94'(28.6 m) maximum boom length
u 147' (44.8 m) maximum tip height
u Four-section full power, mechanically synchronized boom with single pedal control
u Swingaway jib offsettable 0°, 15° or 30°
u Two-speed main and auxiliary winches
u Quick-reeving boom head and hook block
u Fully independent multi-position out and down outriggers
u Environmental operator's cab optimizes load visibility and productivity
u Electro-proportional joystick controls
u RCI 510 load system Rated Capacity Indicator
u Easy access for routine servicing of the engine, transmission, batteries, etc. provided
by hinged lockable access doors.
u Easy to read load chart books include range diagrams
u 12-month or 2000 hours warranty, major weldments are 5-years or 10,000 hours

Wednesday, July 1, 2009

Racor Filtration

Racor is the global leader in fuel, air, oil, and coolant filtration systems for internal combustion engines and fuel delivery. Founded in 1969, the company’s product line includes fuel filter/water separator systems, high flow filter vessels and elements, oil filter systems, automatic transmission filters, heavy-duty engine air filters, crankcase ventilation filter systems, and coolant products. Racor also offers concentrated additives for fuel, gasoline, and lube oil. Applications include engine-powered equipment in the on-highway, off-highway, marine, agriculture, and stationary power markets.
Heavy-Duty Standard Air Filters for On-Highway, Off-Highway, and Stationary Applications
Racor AFSF Standard Air Filters are designed to be connected to the air intake of the gasoline or diesel engine.
How They WorkAir flows through static vanes (plastic or metal) which causes the air to spin. Centrifugal force separates the heaviest impurities (dust, dirt, insects, and other debris) from the air stream. These contaminants are discharged automatically through an integral evacuator valve. Only purified air flows to the air filter elements (primary and safety stages of filtration).
Typical Applications• Agricultural Machinery• Earth-Moving Equipment• Stationary Engines/Generator Sets• Trucks, Buses, and Recreational Vehicles• Material Handling Equipment• Snow Removal Equipment and Street Sweepers
These assemblies are designed and tested for today’s new alternative fuels: Compressed Natural Gas (CNG), Liquid Natural Gas (LNG) and Liquid Propane Gas (LPG). CNG, LNG and LPG have the same problems that plague diesel and gasoline, particulate contamination collects during handling, water condenses in tanks, and compressors leak oil into the fuel stream.

The precision components necessary for the efficient operation of an alternative fuel system demand superior filtration. Racor anticipated the need for ultra-fine filtration at the pressures required by compressed natural gas. The answer is the industry’s first, most complete and most
efficient line of alternative fuel filters/coalescers.

FFC series filters are designed to protect critical engine components in CNG, LNG, and LPG powered vehicles. Contaminants can be introduced into a vehicle’s fuel tank when being fueled or may come from compressors and/or storage facilities. A grade 6 coalescing filter is specifically designed to remove oil, water, and solid contamination from compressed natural gas.
The patented coalescing filter removes 99.97% of all aerosols in the 0.3 to 0.6 micron range.

These fuel filter/coalescer elements are produced by a patented process of arranging micro-glass fibers into a tubular form. During operation, fuel is forced through the coalescing media from the inside of a cartridge through a tubular wall to the outside, where large droplets fall to the bottom of the housing. Oily water emulsion accumulates until drained while dirt particles remain trapped and collect on surfaces of fibers.

Thursday, June 25, 2009

Lighting Tower and Stadium light




Lighting Tower and Stadium light HID
BRITELINE ELITE 2000 SERIES
High performance floodlight featuring 2000 watt capacity with precision beam control. HPF gear
is remote either in-pole (TRA) or exterior mounted (CB). Prices shown with in-pole (TRA). The
fitting comes complete with adjustable mounting trunnion for universal mounting options.
TRAY MOUNTED MODELS
BRITELINE ELITE-S (SPECULAR)
BRITELINE ELITE 1500 BL/SPECULAR/TRAY MW1500T7/7H KIT3333
BRITELINE ELITE 1500 BL/HV/SPECULAR/TRAY MW1500T7/7H KIT3335
BRITELINE ELITE 2000 T8/BL/HV/SPECULAR/TRAY M2000/T8/DE KIT3381 BRITELINE ELITE-P (PEENED)
BRITELINE ELITE 1500 BL/PEENED/TRAY MW1500T7/7H KIT3342
BRITELINE ELITE 1500 BL/HV/PEENED/TRAY MW1500T7/7H KIT3344

BRITELINE ELITE 2000 T8/BL/HV/PEENED/TRAY M2000/T8/DE KIT3386

CAST BOX MODELS
BRITELINE ELITE-S (SPECULAR)
BRITELINE ELITE 1500 BL/SPECULAR/CB MW1500T7/7H KIT3334

BRITELINE ELITE 1500 BL/HV/SPECULAR/CB MW1500T7/7H KIT3336

BRITELINE ELITE 2000 T8/ BL/HV/SPECULAR/CB M2000T8/DE KIT3375

BRITELINE ELITE-P (PEENED)
BRITELINE ELITE 1500 BL/PEENED/CB MW1500T7/7H KIT3343
BRITELINE ELITE 1500 BL/HV/PEENED/CB MW1500T7/7H KIT3345
BRITELINE ELITE 2000 T8/ BL/HV/PEENED/CB M2000/T8/DE KIT3380
ALL CONFIGURATIONS FEATURE CONSTANT WATTAGE (CWA) GEAR
OPTIONS
BRITELINE ELITE GLARE SHIELD KIT XX00000

BRITELINE ELITE UWL HOOD Z57250

BRITELINE ELITE REPLACEMENT VISOR Z87110

BRITELINE ELITE 2000/WIRE GUARD X00999

BRITELINE ELITE 2000/FUSE ADDER 240V B/E 2000/FUSE/240V/
BRITELINE ELITE 2000/FUSE ADDER 415V B/E 2000/FUSE/415V/ADDER
BRITELINE ELITE 1500W SPARE LAMPHOLDER KIT X00997

BRITELINE ELITE 2000W SPARE LAMPHOLDER KIT X009975



SITECO R2 MAXI MID ARC - ASYMMETRIC FLOODLIGHT IP65
Ultra high performance specification grade floodlight designed for use in installations requiring
a superior level of performance. Suitable for applications such as large area or stadium
floodlighting, high performance and controlled lighting, as well as large architectural facades.
The fitting is manufactured from die-cast aluminium housing and high grade aluminium
roto-symmeterical reflector system. The enclosure is made of chemically toughened glass
resistant to temperature fluctuations and comes complete with supportive mesh. The R2 Maxi
features 5 beam distribution options and utilises a double ended 5600K CRI >90 lamp.
Tray gear as standard.
R2 MAXI
R2 MAXI 2000W TYPE 1 HSITD2000 KIT5118
R2 MAXI 2000W TYPE 2 HSITD2000 KIT5119

R2 MAXI 2000W TYPE 3 HSITD2000 KIT5120

R2 MAXI 2000W TYPE 4 HSITD2000 KIT5121

R2 MAXI 2000W TYPE 5 HSITD2000 KIT5122



REMOTE CONTROL GEAR PACKS
In-pole or weatherproof exterior HPF control gear sets for luminaires not having integral capability.
(Lamp excluded from price).
METAL HALIDE (IN POLE)
SYL 70 MH/TRA* FA25101

SYL 100 MH/TRA* FA19100
SYL 150 MH/TRA * FA26100

SYL 250 MH/TRA* F21116
SYL 250 MA/CWA/TRA F21104

SYL 400 MH/TRA* F22116

SYL 400 MA/CWA/TRA F22104

SYL 1000 MH/TRA* F23116

SYL 1000 MA/CWA/TRA F23104
SYL 1000 MA/CWA/TRA/HV F23204
SYL 1500 MA/CWA/TRA F24104 $ 750.00
SYL 1500 MA/CWA/TRA/HV F24204
SYL 1500 BL/CWA/TRA F31104
SYL 1500 BL/CWA/TRA/HV F31204
SYL 2000 BL/CWA/TRA/HV F32204

SYL 2000 MH/TRA/HV/NO IGN/T10 F29204

SYL 2000 MH/TRA/HV/NO IGN/SPORTSLINE F25205




MRSE Series Lamps Mundial 1000 watt

DESCRIPTION: The MRSE Series is a
hazardous-rated heavy-duty floodlight suitable
for the harshest environments. Designed to
absorb shock and vibration, this fixture is
perfect for earth moving machinery and heavy
equipment


Spesification :


Housing: Seamless, marine-grade cast aluminum
housing provides excellent corrosion resistance and is
light weight for easy installation.
Finish: Thermoset powder coat, standard in Phoenix
Green.
Lens: Heat and impact resistant, 7/32" thick heavy
duty tempered glass, withstands temperature shock.
Hardware: All external hardware is stainless steel to
prevent corrosion.
Mounting Bracket: Thermoset, powder coated 1/4”
steel mounting bracket.
Remote Ballast: Shock and vibration-resistant ballast
available. Required for Complete Installation, Order
Separately.
Gaskets: High temperature silicone and EPDM
gaskets provide a positive seal against dirt and
moisture.
Socket: Silicone and EPDM rubber lamp isolation
socket. The multiplane socket float and lamp stabilizer
absorb shock and vibration, holding the lamp in place
to extend lamp life.
Wiring: Splice box is supplied with 1/2" NPT tapped
hole for connection to suitable ballast.

Tuesday, June 23, 2009

Swagelok Fitting and Connector






















Hella Automotive Lighting and Electrical


Hella Driving Lamps and
Automotive Safety
Hella has long been a pioneer in innovative
lighting technology, and is one of the leading
suppliers to the automotive industry in
this field. Hella’s high-quality driving lamps
incorporate the latest technological
advances to:
• Increase your range of vision at night,
effectively reducing your chance of
being involved in an accident.
• Ease the difficulty of night driving, thus
minimising the chance of driver fatigue.
• Make your vehicle more visible to other
motorists on the road.
Even with good lighting, driving during the
day is safer than driving at night – but with
Hella, you can rest assured that you are
doing all you can to protect yourself, your
vehicle and other road users.

Lighting options to suit your needs
Pencil Beam Driving Lamps
(for long-range illumination)
The Pencil Beam driving lamp is designed for maximum long-range illumination, providing
improved visibility of objects and traffic situations further in the distance. Very little light is
lost to the sides or the area right in front of the vehicle. This pattern is particularly suitable for
vehicles travelling long distances at high speeds, when objects further in the distance must be
recognised quickly to minimise the reaction time of the driver.
Spread Beam Driving Lamps
(for a full field of vision)
The Spread Beam driving lamp provides good illumination of both the area immediately in front
of the vehicle and the road ahead. This pattern is particularly suitable for slower vehicles, such
as trucks and buses, when fatigue-free driving is more important than recognising objects in the
distance.
Hella Fog Lamps (for safe driving in inclement weather)
Fog, rain or snow can reflect the light of standard driving lamps back into your eyes, creating
dangerous glare that makes it difficult to recognise hidden hazards. Hella fog lamps are
equipped with specially designed reflectors, which evenly illuminate the width of the road,
providing you with a wide path of light for greater safety through clearer visibility. These lamps
are particularly suitable for any vehicle driving through fog, rain or snow

Work lamp Hella

Working vehicles such as tractors, trucks,
cranes, earthmoving and construction
vehicles have special worklamp needs.
Careful selection of the right work
environment lighting is essential to provide
a bright, safe work place. Hella’s Free-Form
Technology and new Xenon Gas Discharge
worklamps provide you with efficient,
powerful tools to achieve your ideal work
space lighting.
Hella is a leader in the development of an
innovative range of worklamps, to give
you unmatched choice of specialised
work-lighting solutions to meet almost any
requirement.

Halogen Free-Form (FF)
WorkLamps
What is FF (Free-Form) technology?
Old-style parabolic reflectors direct light into a
beam that is focused and projected by a single
lens optic. Hella’s FF technology uses over
50,000 computer-designed individual reflector
points to focus the light, thus improving the
brightness of the light and the pattern of the
beam.
Advantages of FF lighting:
• Able to produce much more light than
conventional lamps, which is not only more
efficient, but also saves installation time,
power and maintenance costs.
• Effective beam control directs light more
accurately and evenly, ensuring reduced
bonnet glare and eye fatigue

Hella Signal lamps

Australian Design Rules
(ADRs)
On the 1st October 1991, Australia
introduced stringent mandatory
regulations for all vehicles manufactured
on or after that date. These regulations,
known as 3rd Edition Australian Design
Rules (ADRs), stipulate minimum
performance and design standards for
particular vehicle safety features.
Hella supplies over 125 products
complying with current ADRs including
reversing lamps, indicator lamps, reflectors
and filament globes.
To simplify the ADR approval process
for smaller manufacturers and individual
vehicle builders, Hella has made a
consolidated Summary of Evidence (SE)
submission to the Federal Office of Road
Safety (FORS). This submission covers
all Hella products that comply with 3rd
Edition ADRs. For easy reference, Hella
lists both the Hella and FORS Component
Registration
Numbers (CRN)
beside each Part No.
in a quick reference
ADR application
chart at the rear
of this catalogue
(pages 316 - 323 ).
All Hella packaging
now indicates ADR
compliance where
applicable and
lamp identification
information along
with specific ADR related lamp orientation
and mounting requirements.
The provision of this information will
enable customers requiring ADR
compliance to simply quote the relevant
CRN to the authorities, who maintain a
central register, rather than undertake a
detailed SE submission for each lamp
function.
























Hella Accessories

Switches
Hella’s range of switches includes: rotary,
toggle, rocker, push/pull, ignition/starter,
battery master, stop lamp and
oil pressure switches - all
manufactured for reliable,
long service life.

Horns
Hella’s horn range includes disc, scroll and
air horns for automotive and commercial
applications.
Tip: Remember to mount horns with the
trumpet in a downward position to reduce
the risk of water build up and potential
damage to the diaphragm of the horn.



Terminals and connectors
Everything you require for repair and
maintenance of your automotive electrical
system. The range includes non-insulated,
insulated and double crimp
varieties and the tools you’ll need
for a professional result. All metal
components of Hella
terminals are made from
100% brass.
Tip: To create a safe effective
connection remember to
always follow the colour coding
marked on the crimp tool
and ensure the same colour
terminal is used. Poorly
crimped terminals are a
common fault found in auto
electrical circuits.
Re-wiring Accessories
Hella has a full range of products to secure
and protect your cabling / re-wiring project.
Cable ties, spiral cable wrap, convoluted
split tubing, heat shrink tubing and cable
connectors are a few of the products offered
by Hella.


Plugs and sockets
Hella’s plug and socket range is ideal for
caravans or trailers. The range includes
metal and plastic models in 5-pin and 7-pin
configuration and a variety of shapes and
sizes. Hella also stocks heavy-duty trailer
connectors, cigarette lighters and special
purpose 2 pole plugs and sockets.


Relays
Hella offers a
complete range of
high quality relays,
including a variety
of normally open
relays required for
most types of vehicle
lighting, horns, heating
circuits, fan motors and air-conditioning
equipment, as well as
change-over relays used for switching
current from one user to another.
Tip: Always fit a suitable relay when
installing auxiliary lamps to your vehicle.
This will maximise light output and
minimise premature wear of components.
For this reason all Hella



Battery Booster Cables
Hella’s durable battery booster cables
and clamps are fully insulated and rated at
500 Amps.
